Gurvinder Kaur

               Guidelines for the height of the work surfaces for standing
                                                          17
            workers in industry or offices have existed for many years.  In
            medical literature, there has been, however, less focus on the
            ergonomics problem of operating table height during
            laparoscopy. Only recently a paper has been published dealing
            with the ergonomic problem of incorrect operating table
            height. 18
               This aim of the study was to find out the ergonomically
            optimal operating table height required for the particular height
            of the surgeon for laparoscopic surgery in order the surgeon
            can perform their task comfortably without the extreme upper
            limb joint movements. The approach of this study can be
            extended as guidelines for designing of the ergonomically
            optimal operating table.

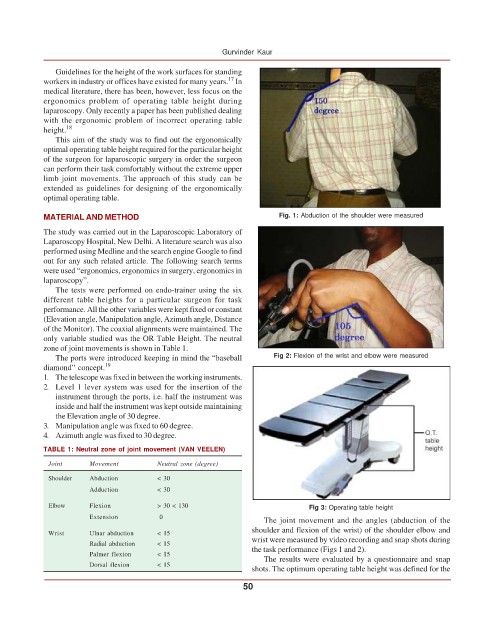

            MATERIAL AND METHOD                                       Fig. 1: Abduction of the shoulder were measured
            The study was carried out in the Laparoscopic Laboratory of
            Laparoscopy Hospital, New Delhi. A literature search was also
            performed using Medline and the search engine Google to find
            out for any such related article. The following search terms
            were used “ergonomics, ergonomics in surgery, ergonomics in
            laparoscopy”.
               The tests were performed on endo-trainer using the six
            different table heights for a particular surgeon for task
            performance. All the other variables were kept fixed or constant
            (Elevation angle, Manipulation angle, Azimuth angle, Distance
            of the Monitor). The coaxial alignments were maintained. The
            only variable studied was the OR Table Height. The neutral
            zone of joint movements is shown in Table 1.
               The ports were introduced keeping in mind the “baseball  Fig 2: Flexion of the wrist and elbow were measured
            diamond” concept. 19
            1. The telescope was fixed in between the working instruments.
            2. Level 1 lever system was used for the insertion of the
               instrument through the ports, i.e. half the instrument was
               inside and half the instrument was kept outside maintaining
               the Elevation angle of 30 degree.
            3. Manipulation angle was fixed to 60 degree.
            4. Azimuth angle was fixed to 30 degree.
            TABLE 1: Neutral zone of joint movement (VAN VEELEN)
             Joint     Movement         Neutral zone (degree)
             Shoulder  Abduction        < 30
                       Adduction        < 30

             Elbow     Flexion          > 30 < 130                            Fig 3: Operating table height
                       Extension         0
                                                                  The joint movement and the angles (abduction of the
                                                               shoulder and flexion of the wrist) of the shoulder elbow and
             Wrist     Ulnar abduction  < 15
                                                               wrist were measured by video recording and snap shots during
                       Radial abduction  < 15
                                                               the task performance (Figs 1 and 2).
                       Palmer flexion   < 15
                                                                  The results were evaluated by a questionnaire and snap
                       Dorsal flexion   < 15
                                                               shots. The optimum operating table height was defined for the
