P. 56

Gurvinder Kaur

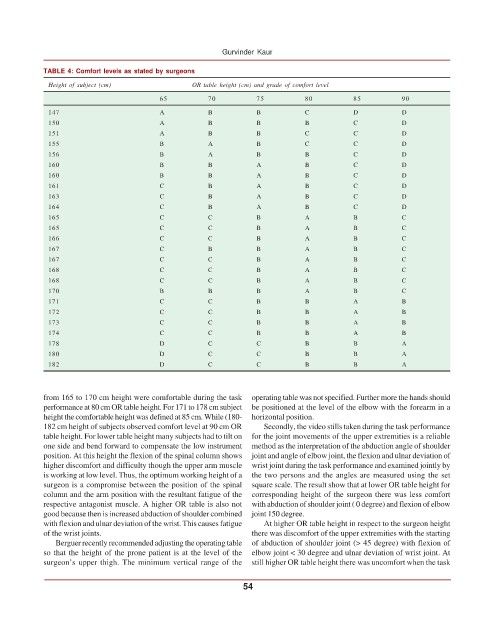

            TABLE 4: Comfort levels as stated by surgeons

             Height of subject (cm)              OR table height (cm) and grade of comfort level
                                         65          70          75          80          85          90
             147                         A           B           B           C           D           D
             150                         A           B           B           B           C           D
             151                         A           B           B           C           C           D
             155                         B           A           B           C           C           D
             156                         B           A           B           B           C           D
             160                         B           B           A           B           C           D
             160                         B           B           A           B           C           D
             161                         C           B           A           B           C           D
             163                         C           B           A           B           C           D
             164                         C           B           A           B           C           D
             165                         C           C           B           A           B           C
             165                         C           C           B           A           B           C
             166                         C           C           B           A           B           C
             167                         C           B           B           A           B           C
             167                         C           C           B           A           B           C
             168                         C           C           B           A           B           C
             168                         C           C           B           A           B           C
             170                         B           B           B           A           B           C
             171                         C           C           B           B           A           B
             172                         C           C           B           B           A           B
             173                         C           C           B           B           A           B
             174                         C           C           B           B           A           B
             178                         D           C           C           B           B           A
             180                         D           C           C           B           B           A
             182                         D           C           C           B           B           A



            from 165 to 170 cm height were comfortable during the task  operating table was not specified. Further more the hands should
            performance at 80 cm OR table height. For 171 to 178 cm subject  be positioned at the level of the elbow with the forearm in a
            height the comfortable height was defined at 85 cm. While (180-  horizontal position.
            182 cm height of subjects observed comfort level at 90 cm OR  Secondly, the video stills taken during the task performance
            table height. For lower table height many subjects had to tilt on  for the joint movements of the upper extremities is a reliable
            one side and bend forward to compensate the low instrument  method as the interpretation of the abduction angle of shoulder
            position. At this height the flexion of the spinal column shows  joint and angle of elbow joint, the flexion and ulnar deviation of
            higher discomfort and difficulty though the upper arm muscle  wrist joint during the task performance and examined jointly by
            is working at low level. Thus, the optimum working height of a  the two persons and the angles are measured using the set
            surgeon is a compromise between the position of the spinal  square scale. The result show that at lower OR table height for
            column and the arm position with the resultant fatigue of the  corresponding height of the surgeon there was less comfort
            respective antagonist muscle. A higher OR table is also not  with abduction of shoulder joint ( 0 degree) and flexion of elbow
            good because then is increased abduction of shoulder combined  joint 150 degree.
            with flexion and ulnar deviation of the wrist. This causes fatigue  At higher OR table height in respect to the surgeon height
            of the wrist joints.                               there was discomfort of the upper extremities with the starting
               Berguer recently recommended adjusting the operating table  of abduction of shoulder joint (> 45 degree) with flexion of
            so that the height of the prone patient is at the level of the  elbow joint < 30 degree and ulnar deviation of wrist joint. At
            surgeon’s upper thigh. The minimum vertical range of the  still higher OR table height there was uncomfort when the task
