P. 4

RK Mishra et al

               In this study, we describe our experience with laparoscopic
            techniques using a PMAT camera holder.

            Materials and Methods
            To manipulate the laparoscope along with the visual perception,
            this mechatronic assistant with three degrees of freedom was
            used (Fig. 1). This mechatronic device is made of aluminum and
            weighs 2.5 kg, including laparoscope and camera. This system
            consists of a harness (Fig. 2A) that is placed over the surgeon’s
            shoulders.




                                                                   A              B          C         D

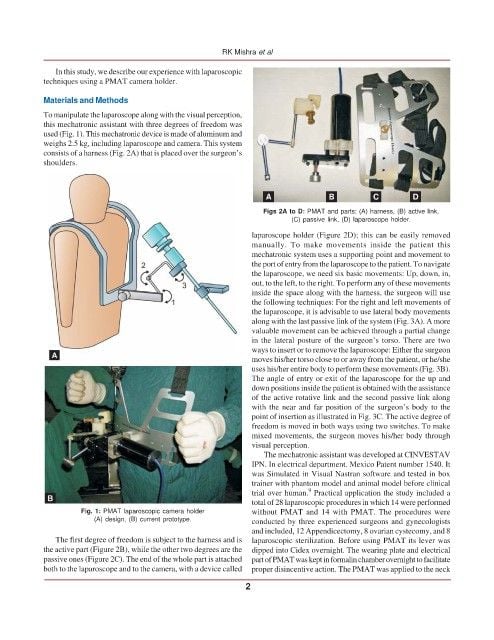

                                                                  Figs 2A to D: PMAT and parts: (A) harness, (B) active link,
                                                                         (C) passive link, (D) laparoscope holder.

                                                               laparoscope holder (Figure 2D); this can be easily removed
                                                               manually. To make movements inside the patient this
                                                               mechatronic system uses a supporting point and movement to
                                                               the port of entry from the laparoscope to the patient. To navigate
                                                               the laparoscope, we need six basic movements: Up, down, in,
                                                               out, to the left, to the right. To perform any of these movements
                                                               inside the space along with the harness, the surgeon will use
                                                               the following techniques: For the right and left movements of
                                                               the laparoscope, it is advisable to use lateral body movements
                                                               along with the last passive link of the system (Fig. 3A). A more
                                                               valuable movement can be achieved through a partial change
                                                               in the lateral posture of the surgeon’s torso. There are two
                                                               ways to insert or to remove the laparoscope: Either the surgeon
                                                               moves his/her torso close to or away from the patient, or he/she
                                                               uses his/her entire body to perform these movements (Fig. 3B).
                                                               The angle of entry or exit of the laparoscope for the up and
                                                               down positions inside the patient is obtained with the assistance
                                                               of the active rotative link and the second passive link along
                                                               with the near and far position of the surgeon’s body to the
                                                               point of insertion as illustrated in Fig. 3C. The active degree of
                                                               freedom is moved in both ways using two switches. To make
                                                               mixed movements, the surgeon moves his/her body through
                                                               visual perception.
                                                                  The mechatronic assistant was developed at CINVESTAV
                                                               IPN. In electrical department. Mexico Patent number 1540. It
                                                               was Simulated in Visual Nastran software and tested in box
                                                               trainer with phantom model and animal model before clinical
                                                                             9
                                                               trial over human.  Practical application the study included a
                                                               total of 28 laparoscopic procedures in which 14 were performed
                     Fig. 1: PMAT laparoscopic camera holder   without PMAT and 14 with PMAT. The procedures were
                        (A) design, (B) current prototype.     conducted by three experienced surgeons and gynecologists
                                                               and included, 12 Appendicectomy, 8 ovarian cystecomy, and 8
               The first degree of freedom is subject to the harness and is  laparoscopic sterilization. Before using PMAT its lever was
            the active part (Figure 2B), while the other two degrees are the  dipped into Cidex overnight. The wearing plate and electrical
            passive ones (Figure 2C). The end of the whole part is attached  part of PMAT was kept in formalin chamber overnight to facilitate
            both to the laparoscope and to the camera, with a device called  proper disincentive action. The PMAT was applied to the neck
